Concrete Floor Thickness: Essential for Car Hoist Installation

Key Factors to Consider for the Successful Installation of a Car Hoist in Your Garage

When contemplating the installation of a car hoist in your garage, it is crucial to confirm that your concrete floor meets the necessary specifications. A solid and stable foundation is essential not only for the efficient operation of the hoist but also for protecting your vehicles and ensuring the safety of all individuals using the equipment. By preparing adequately and strictly following the installation guidelines, you can significantly improve both the performance and lifespan of your hoist, making your investment truly worthwhile.

Typically, most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is critical as it allows for the even distribution of weight from both the vehicle and the hoist, thereby minimising the likelihood of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially extending up to 150mm (6 inches), to guarantee optimal performance and safety throughout operation.

Comprehensive Guide to Determining the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a vital aspect in ensuring the safe installation and effective operation of a car hoist. Several factors must be assessed when determining the appropriate depth for your slab to guarantee that it can adequately handle the loads it will encounter during use. A thorough understanding of these factors will help prevent costly errors and significantly enhance the overall safety of your garage setup.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists impose considerable stress on the concrete floor beneath them. Thus, it is essential to understand the total weight that your concrete floor must support. This consideration encompasses not only the weight of the vehicle but also the weight of the hoist itself, which can contribute a substantial load to the floor.

A standard passenger car generally weighs between 1,500 to 2,000 kg, while the hoist may add an additional 500 to 1,000 kg. Furthermore, it is prudent to factor in extra weight as a safety buffer to ensure that the structure can withstand unforeseen circumstances without compromising safety.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is typically adequate. However, if you plan to lift notably heavier vehicles, you may need to consider a thicker slab to ensure safety and stability during operation.

Consulting with a structural engineer is a wise move, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness required based on your unique circumstances and specific requirements.

Investigating Different Types of Car Hoists and Their Concrete Thickness Requirements

It is crucial to recognise that various types of car hoists come with distinct requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage setup.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated weight. This is essential for ensuring safe and efficient operation.

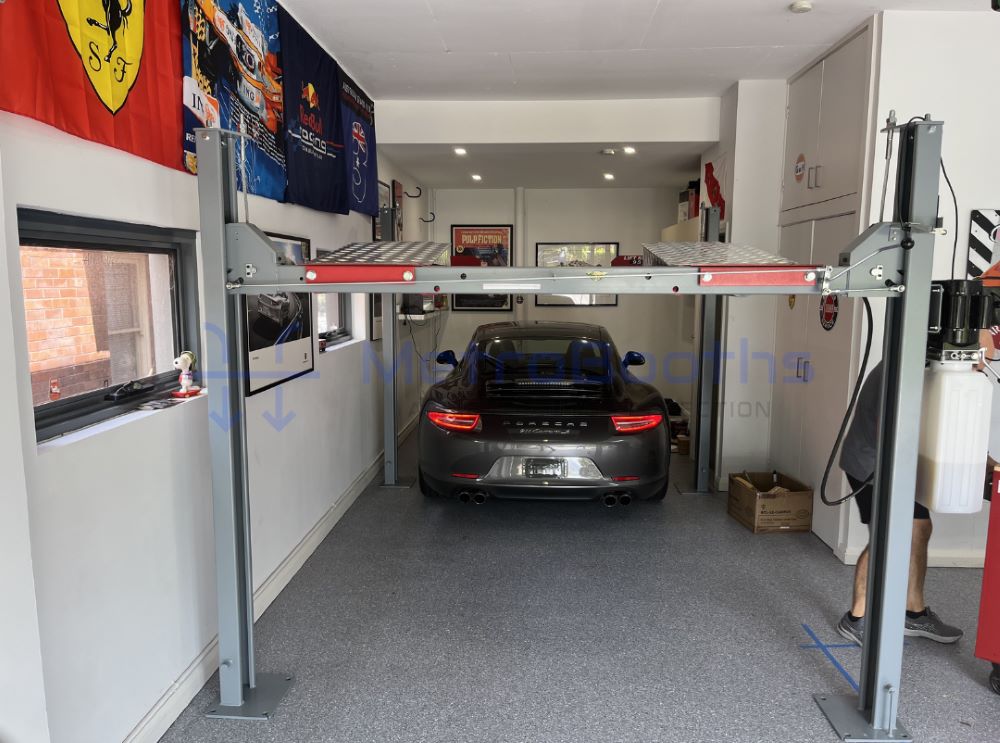

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, usually within the range of 100 mm to 125 mm. Understanding these differences is vital, as it significantly influences your planning and installation process.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will generally indicate the minimum concrete thickness required for safe operation. Following these guidelines is crucial for achieving optimal performance and extending the lifespan of your equipment.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you plan to lift.

Understanding the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as important as its thickness. Stronger concrete can often be successfully employed at a thinner depth while still providing adequate support for heavy loads, particularly relevant in the context of a car hoist installation.

It is recommended to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts advocate for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, thereby ensuring reliability and safety.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor, potentially allowing you to utilise a thinner slab while still ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Critical Installation Factors for Ensuring Effective Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and ongoing floor maintenance are of paramount importance. By giving careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment and enhancing your garage's functionality.

Vital Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before installing your car hoist, it is imperative to verify that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is crucial to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional who can accurately assess its condition is highly advisable to ensure safety.

Essential Ongoing Maintenance for Your Car Hoist Following Installation

Once your car hoist is installed, it is vital to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could adversely affect the hoist's functionality and safety.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly checking the tightness of the anchor bolts is also crucial, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage of your equipment.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment in your garage's functionality.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some commonly asked questions related to the concrete requirements for various types of lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may necessitate thicker slabs for safe operation, ensuring compliance with safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, thereby ensuring peace of mind and safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation and stability.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, accommodating heavier loads.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency in your garage.
