Shed Wiring Tips for Electricians in Countryside Areas

If you own a shed located on acreage and find it cumbersome to manage extension cords from your home, it is essential to ensure your shed is wired appropriately. Whether you need a simple storage shed that requires just a light and a power point, or a fully equipped workshop that operates welders and compressors, adhering to the correct procedures is critically important. In NSW, the only legal way to achieve this is by hiring a licensed electrician.

This comprehensive guide outlines the essential steps to provide electricity to your shed, detailing what your electrician will need for the installation process and giving an estimate of the costs associated with the Mid North Coast.

Maximise Your Shed's Electricity Supply: Understanding Cable Runs for Efficient Power Distribution

The foremost consideration for any shed wiring project is the effective transmission of electricity from your main switchboard to the shed itself. On larger properties, this distance can reach 30, 50, or even over 100 metres. The longer the distance, the larger the diameter of the cable required to minimise voltage drop, ensuring your shed receives adequate power.

When planning cable runs, you have two primary options available:

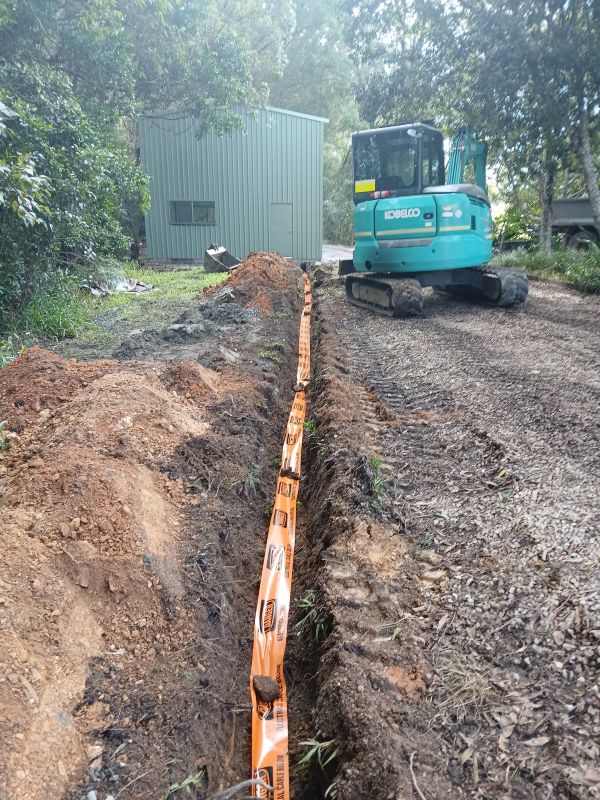

• Underground cable run — This is the most common and visually appealing option. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas where heavy vehicles frequently pass. This method protects the cable from harsh weather, wildlife interference, and falling branches, making it the preferred choice for most properties with significant acreage.
• Overhead cable run — While less common, this option may be necessary if solid rock is present or if the terrain complicates trenching. Overhead runs must comply with proper clearance heights and require support poles, which can significantly increase costs.

For the majority of properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the most recommended approach. Your electrician in Bellingen can evaluate your site and suggest the optimal route for the installation.

Establishing a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

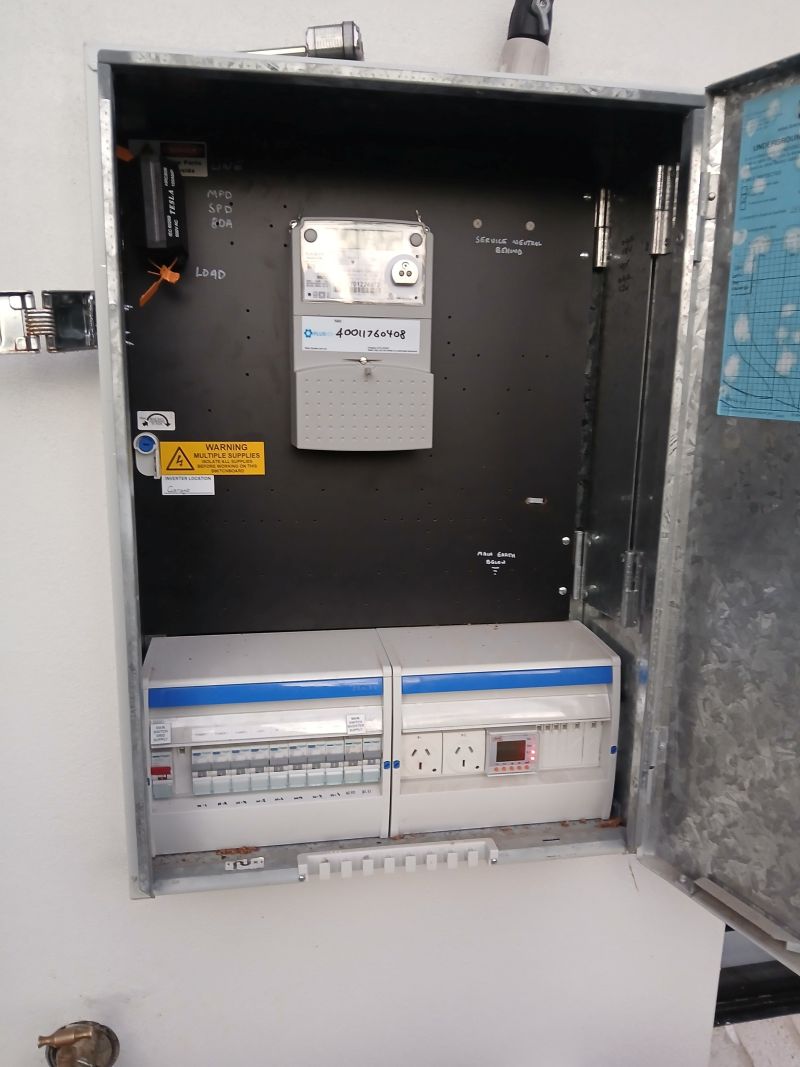

Merely running a single cable to the shed and plugging in appliances does not suffice. Any shed that is fitted with a proper power supply must incorporate a dedicated sub-board, often referred to as a distribution board. This device operates as a mini switchboard within the shed, effectively managing all circuits and enhancing safety.

Your sub-board will typically comprise the following essential components:

• Main switch — This component allows you to isolate all electricity to the shed independently from the main house, enhancing safety and control over your power supply.
• RCDs (Residual Current Devices) — These devices, mandated by NSW electrical regulations, provide rapid power cut-off in mere milliseconds in the event of a fault. This feature is crucial for safety in a shed environment where moisture, dust, and damaged leads are commonplace.
• Circuit breakers — These provide individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring your safety and convenience.

If your house's switchboard is outdated, your electrician may also recommend upgrading it to accommodate the additional load directed to the shed effectively, ensuring all your electrical installations function safely and efficiently.

What Key Features Should Be Installed Inside Your Shed for Optimal Functionality?

The specific installations that your electrician performs inside the shed will entirely depend on its intended use. Here’s an overview of common setups for various applications, ensuring your shed meets your specific needs.

Creating an Efficient Basic Storage Shed to Maximise Space

If your shed primarily serves as a storage area for tools, a ride-on mower, or other equipment, consider implementing the following practical setup:

• LED batten lights — One or two ceiling-mounted LED batten lights will efficiently illuminate the entire area, making it easier to locate your tools and equipment. Your electrician can recommend the best lighting arrangement based on the shed's dimensions and layout, ensuring optimal brightness.
• Two to four general power points — These will be sufficient for plugging in a charger, a radio, or a drop saw when required. Expect standard power points and switches to operate on a single circuit, providing reliable access to electricity.
• External light — A weatherproof LED light positioned above the door will ensure visibility, helping you avoid fumbling around in the dark when entering or exiting, enhancing safety and convenience.

Designing a Fully Equipped Powered Workshop Shed for Serious Work

If you frequently use power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential to ensure efficiency:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring a smoother workflow and greater productivity.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively, reducing the risk of overloads.

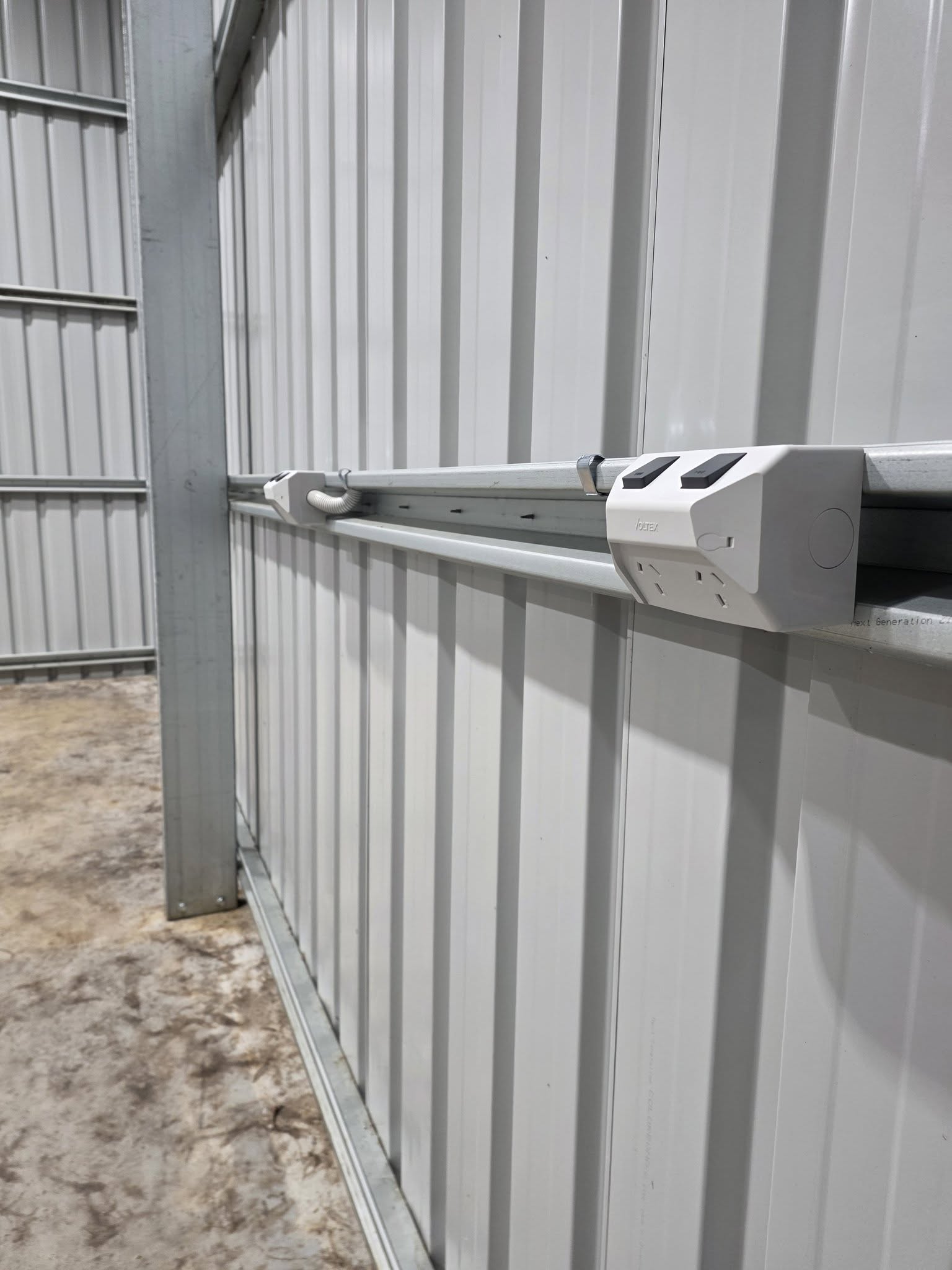

• Strategically placed additional power points — Install outlets at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency and usability.

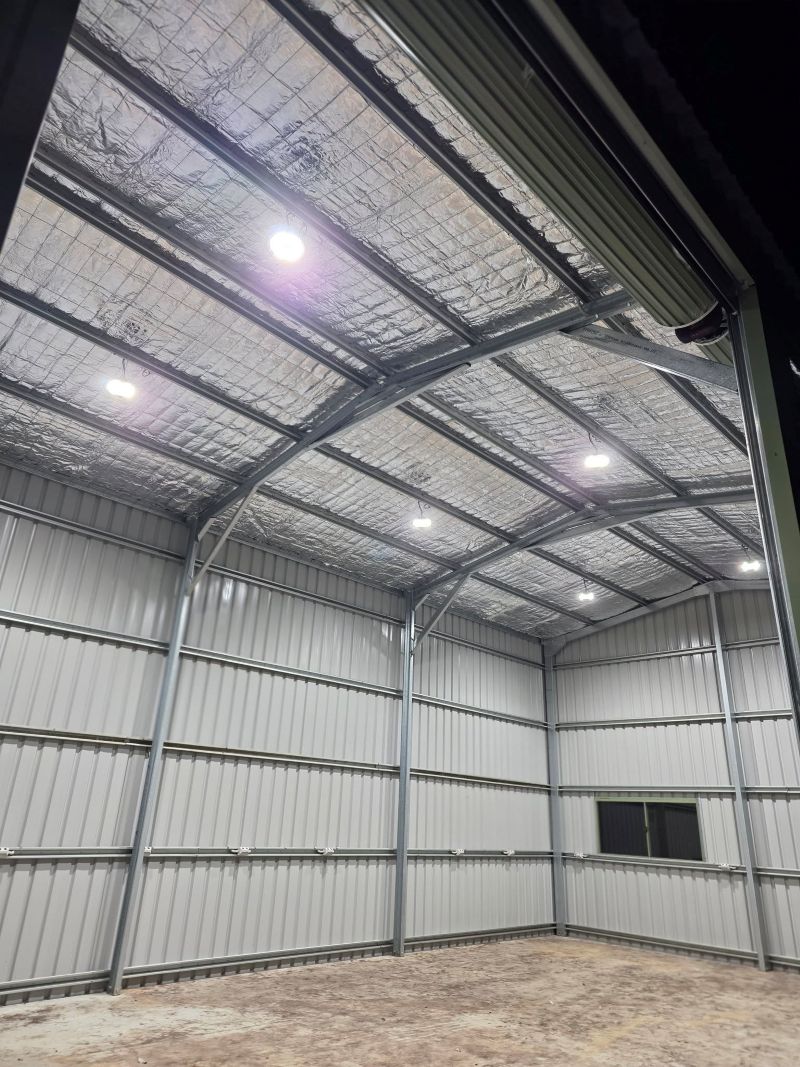

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during detailed tasks, making your workspace safer.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, ensuring your setup is optimal for your needs.

Establishing a Comprehensive Workshop With Three-Phase Power Supply for Heavy-Duty Tasks

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. In such circumstances, considering three-phase power is advisable for enhanced performance.

Three-phase power provides more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast, so planning ahead is crucial.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance with electrical standards.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more costly, especially over long distances, so budgeting accordingly is advisable.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safety and efficiency during operation.

If you are unsure whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will be sufficient. We also provide complete installations for three-phase switchboards should you choose that route for your shed.

Why Is Surge Protection Essential for Your Shed's Safety and Longevity?

Properties located on acreage in the Mid North Coast frequently experience severe lightning storms. A direct or nearby strike can cause extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power.

Installing a high-quality surge protection device within the sub-board acts as an affordable safeguard against potential damage. This device absorbs voltage spikes before they reach your valuable equipment. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to ensure the safety of your investments and prolong their lifespan.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, enabling the shed (and the house) to switch to generator power safely during outages, ensuring continuous operation and safety.

What Are the Key Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations that you need to be aware of when planning your shed wiring:

• All electrical work in NSW must be carried out by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW).
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will handle this aspect of the installation efficiently to ensure compliance and safety.
• If the shed is newly constructed, development approval may be required depending on your council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project might, so it's vital to check with your local council.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, giving you peace of mind.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, the requirement for single-phase or three-phase power, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Most Common Questions About Shed Wiring for Clarity

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards and safety regulations.

How Deep Should Underground Cable Be Buried for Safety?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with safety regulations and protecting the integrity of your electrical system.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor to ensure compliance.

How Long Does It Take to Wire a Shed on Acreage Typically?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications and increased costs.
